差分对版图(Didfferential Pair Layout)

Sep 13, 2011
0 minute read

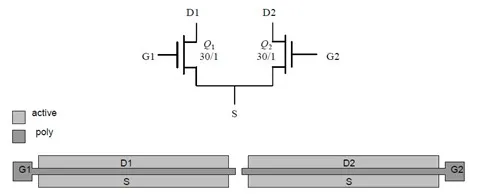

Basic Differential Pair Layout

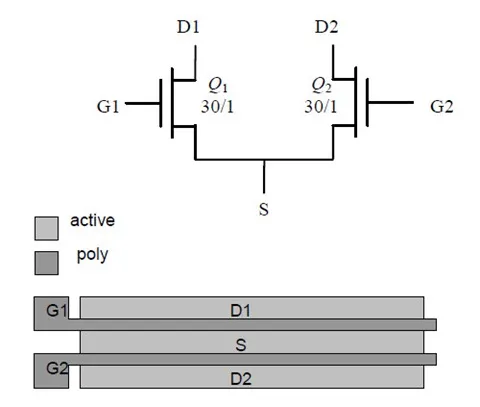

Alternative Differential Pair Layout

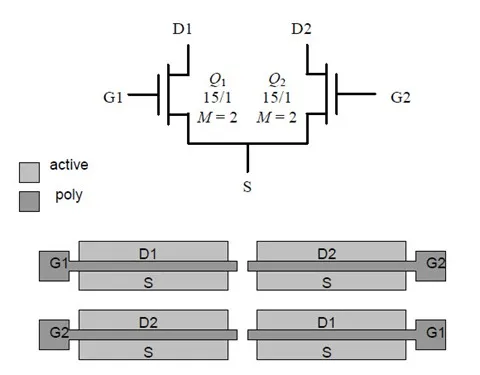

Common Centroid Layout

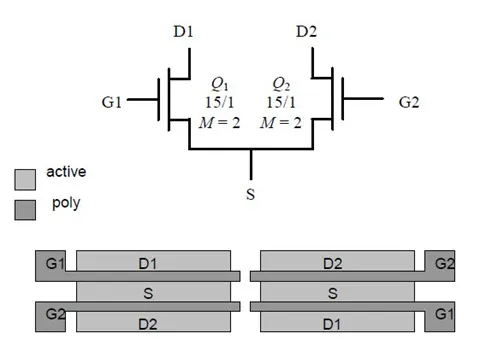

Alternative-Common-Centroid-Layout

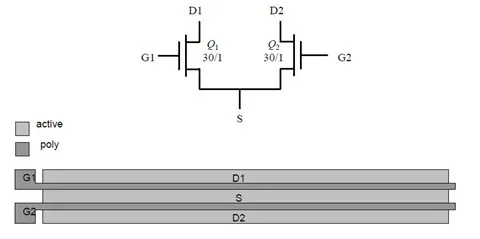

Differential Pair with Very Wide Transistors

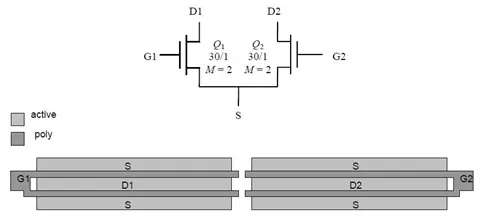

Multi-Finger Transistors

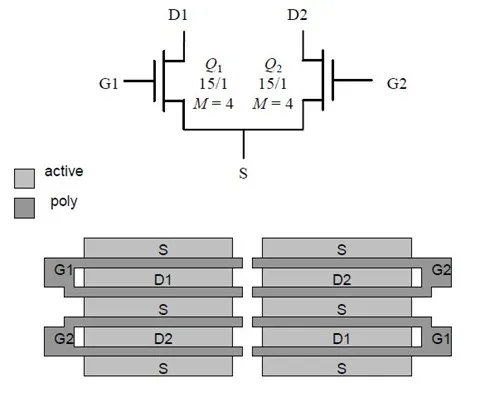

Common Centroid Layout with Multi-Fingered Gates

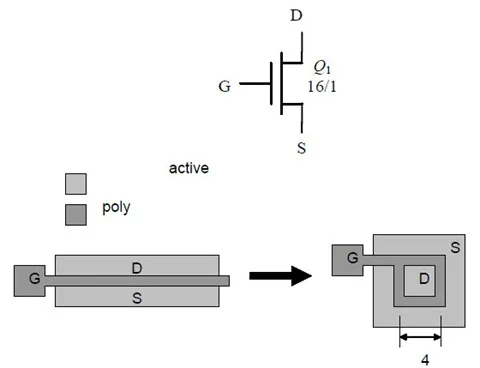

Doughnut-Transistors
